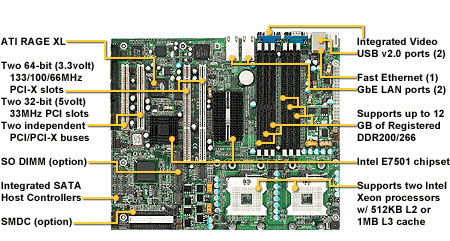

Tiger i7501R (S2735) - TYAN motherboard
Specifications Processor • Dual mPGA604 ZIF sockets • Supports up to two Intel® Xeon™ processors with 512K L2 cache 533MHz, 400MHz FSB and 1MB L3 cache 533MHz FSB • Onboard 4-phase VRM (VRM 9.1 spec) • Front-Side Bus support for 533/400MHz Chipset • Intel® E7501 server chipset • MCH + ICH5R + P64H2 + FWH • Intel® P64H2 supports two PCI(-X) buses • Winbond™ W83627HF Super I/O chip • Winbond™ W83782D hardware monitoring chip Memory • Six 184-pin 2.5V DDR DIMM sockets • Supports up to 12GB of Registered DDR266/200 • Dual channel memory bus • Supports Registered memory only • Supports ECC type memory modules Expansion Slots (total of four usable slots) • Three independent PCI/PCI-X buses • Two 32-bit 33MHz (5V) PCI slots • Two 64-bit 133/100/66MHz (3.3V) PCI-X slots Integrated I/O • One floppy connector supports up to two drives • Two 9-pin serial ports (one connector and one header) • One 25-pin ECP/EPP/SPP parallel header • Four USB 2.0 ports (two rear & two via header) • PS/2 keyboard and mouse connectors Integrated PCI (Parallel ATA) • Provides two PCI bus master channels for up to four UDMA IDE devices * • Support for UDMA 100/66/33 IDE/ATAPI devices Integrated Serial ATA Host Controllers • Provides independent DMA operation on 2 ports * • Data transfer rates up to 150MB/s • Supports RAID 0, 1 (with 82801ER/ICH5R chip) * Note: Maximum number of IDE devices supported with any combination of Integrated IDE and SATA IDE is four devices. For example: 2 SATA and 2 P-ATA (total = 4) Integrated 2D/3D Graphics • ATI® Rage™ XL PCI graphics controller • 8MB Frame Buffer of video memory M7902 (option) [ click to see detail spec ] Integrated LAN Controllers • Intel® 82546EB dual-channel Gigabit Ethernet controller (Default configuration) - Two RJ-45 LAN connectors with LEDs - Connected to an independent PCI-X bus • Two LAN LED headers for external LED output • Intel® 82551QM Fast Ethernet controller - One RJ-45 LAN connector with LEDs - One LAN LED header for external LED output System Management • Total of nine 3-pin fan headers • Six fan headers with tachometer monitoring • One 2-pin chassis intrusion header • Temperature, voltage, and fan monitoring • Watchdog timer Server Management (IPMI - option) • QLogic™ Zircon Baseboard Management Controller (BMC) based on powerful ARM7 • Tailored for IPMI highest 1.5 Spec. • Supports KCS and BT styles • Supports flexible Windows and Linux based Management Solution • Supports RMCP and SNMP protocols • Supports ASF standard and EMP • I2C serial multi-master controllers and UARTs • Built-in IPMB connector • Supports remote Power on/off and reset support (IPMI over LAN); SMDC via built-in 2x25 header BIOS • AMI® BIOS 8.0 on 4 Mbit Flash ROM • LAN remote boot (PXE) & SMBIOS v2.3 support • BIOS Boot Specification v3.1 (BBS) support • Auto configuration of IDE hard drive types Form Factor • ATX footprint (12" x 10.0"; 304.8mm x 254mm) • EPS12V power connector • Serial (one) and VGA (one) connectors • Stacked USB (two) connectors and RJ-45 LAN port on top • Stacked PS/2 keyboard and mouse connectors • Two RJ-45 Side-by-side connectors with LEDs Regulatory • FCC Class B (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
