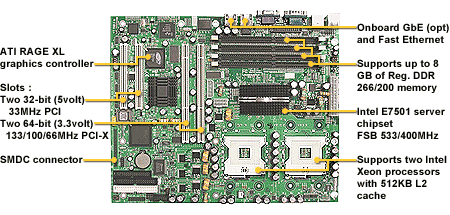

Tiger i7501 (S2723) - TYAN motherboard
Specifications Processor • Dual mPGA604 ZIF sockets • Supports up to two Intel® Xeon™ processors with 512KB of integrated L2 cache • Onboard VRM (VRM 9.1 spec) • Front-Side Bus support for 533/400MHz Chipset • Intel® E7501 server chipset • MCH + ICH3 + P64H2 + FWH • Intel® P64H2 supports two PCI(-X) buses • Winbond™ W83627HF Super I/O chip • Winbond™ W83782D hardware monitoring chip Memory • Four 184-pin 2.5V DDR DIMM sockets • Supports up to 8GB of Registered DDR266/200 • Dual channel memory bus • Supports Registered memory only • Supports ECC type memory modules Expansion Slots • Three independent PCI(-X) buses • Two 64-bit 133/100/66MHz (3.3V) PCI-X slots • Two 32-bit 33MHz (5V) PCI slot • Total of four usable slots Integrated I/O • One floppy connector supports up to two drives • Two 9-pin serial ports (one connector and one header) • One 25-pin ECP/EPP/SPP parallel header (opt.) • Four USB 1.1 ports (two rear, two via header) • PS/2 keyboard and mouse connectors Integrated PCI IDE • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices • Support for ATA-100/66/33 IDE drives and ATAPI-compliant devices Integrated LAN Controllers • Intel® 82545EM Gigabit Ethernet controller (opt.) - One RJ-45 LAN connector with LEDs - Connected to PCI-X bus • Intel® 82551QM Fast Ethernet controller - One RJ-45 LAN connector with LEDs System Management • Total of seven 3-pin fan headers • Six fan headers with tachometer monitoring • One 3-pin chassis intrusion header • Temperature, voltage, and fan monitoring • Watchdog timer Server Management (option) • QLogic™ Zircon Baseboard Management Controller (BMC) based on powerful ARM7 technology • Tailored for IPMI highest 1.5 Spec. • Supports KCS and BT styles • Supports flexible Windows and Linux based Management Solution • Supports RMCP and SNMP protocols • Supports ASF standard and EMP • I2C serial multi-master controllers and UARTs • Built-in IPMB connector • Supports remote Power on/off and reset support (IPMI over LAN) • Server Management Daughter card via built-in 2x25 header Integrated Video • ATI® RAGE™ XL PCI graphics controller • 8MB of video memory BIOS • AMI BIOS 8.0 on 4Mbit Flash ROM • LAN remote boot (PXE) and SMBIOS v2.3 • BIOS Boot Specification v3.1 (BBS) support • Auto configuration of IDE hard drive types Form Factor • ATX footprint (12" x 9.8", 304.8 x 248.92mm) • ATX12V/EPS12V universal power connector • Side-by-side serial (one) and VGA (one) port • Stacked USB (two) connectors • Side-by-side RJ-45 LAN (two) connectors • Stacked PS/2, keyboard, and mouse connectors Regulatory • FCC Class B (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
