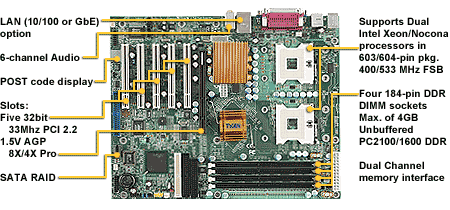

Tiger i7505 (S2668) - TYAN motherboard
Specifications Processor • Supports up to two Intel® Xeon™ processors in 603/604-pin package • Front-Side Bus support for 533/400MHz Chipset • Intel® E7505 North Bridge (MCH) • Intel® ICH4 South Bridge • Winbond™ W83627HF LPC I/O chip Memory • Four 184-pin 2.5V DDR DIMM sockets • Supports up to 4GB of unbuffered DDR266/200 • Dual channel memory bus • Supports ECC/non-ECC memory modules Expansion Slots • One 8X/4X AGP Pro50 slot (1.5V) • Five 32-bit 33MHz (5V) PCI 2.2 slots • Total of six usable slots Integrated I/O • One floppy connector supports up to two drives • Two USB 2.0 ports • CD-in/Aux-in connectors • 2 x 5 pin header for front panel audio connector • One IRDA connector • Power/IDE LED connectors • Six 3-pin headers for CPU/Chassis Fans Integrated PCI IDE • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices • Support for UDMA-100/66 IDE drives and ATAPI-compliant devices Integrated Serial ATA RAID (option) • Promise PDC20378 SATA RAID controller • 2 x SATA and 1 x Ultra ATA/133 channels • Support up to two SATA and two ATA-133/100 IDE drives; supports RAID 0, 1, 0+1 System Management • Winbond W83627HF with hardware monitoring • Six 3-pin fan headers - 3 with tachometer monitoring • Port 80 (POST) code display LED • Temperature and voltage monitoring Integrated LAN Controller (option) • One Intel® Ethernet Controller - Intel® 82540EM GbE or 82551QM 10/100 LAN - Operating at 32bit/33MHz PCI bus Integrated Audio • Realtek ALC650 • 6-channel AC'97 audio CODEC • Line-in, Line-out, Mic-in audio jacks • CD-in/Aux-in connector BIOS • 4Mbit Flash ROM • Supports APM 1.2 & ACPI 1.0 • PnP, DMI2.0, WfM2.0 Power Management • Power Management S1, S4 and S5 support Form Factor • ATX footprint (12" x 9.6", 305 x 245mm) • EPS12V (24-pin + 8-pin) power connector • 4-pin auxiliary power connector • RJ-45LAN (one) connector with LEDs • 25-pin SPP/ECP/EPP parallel (one) connector • 9-pin UART serial (two) connectors • Stacked 2+2 USB (four) connectors • Stacked PS/2 keyboard and mouse connectors • Audio Line-in, Line-out, Mic-in jacks (three) Regulatory • FCC Class B (Declaration of Conformity) • European Community CE • BSMI CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
