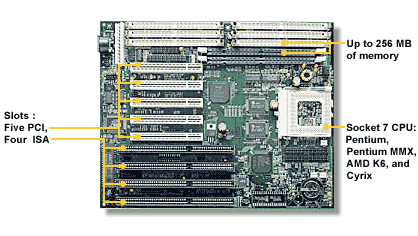

Titan Turbo AT2 - TYAN motherboard
Processor Pentium/Pentium MMX/AMD K6 Supports 75 - 233 MHz Cyrix/SGS/IBM 6x86 P120+, P150+, P166+ M2/K6 233 MHz Support built-in #7 ZIF Socket / Wide Voltage Range Processor speeds: CPU compatibility chart Chipset Intel 430TX PCIset System Memory 8-256MB Six 72-pin SIMM Sockets Two 168-pin DIMM Sockets Fast Page Mode or EDO DRAM Support EDO DIMM and SDRAM Support Cache Memory - On-board 512K Burst Cache Expansion Slots Five 32-bit PCI Bus Mastering Slots Four 16-bit ISA Slots One Shared PCI/ISA Slot - 8 usable Disk Drive & System I/O On-board PCI Bus Mastering IDE Two PCI Bus-Master enhanced IDE Ports 4 HDD + EIDE CD-ROM Support (4 IDE Devices Total) Ultra DMA/33 Support Bus-Mastering DMA Modes 1 & 2 PIO Modes 3 & 4 On-board I/O with IR Two Floppy Drives Two serial ports (16550 UART's) One ECP/EPP parallel port One IR (InfraRed) I/O interface port Two USB rev 1.2 port support *** BIOS Award standard, AMI BIOS Available Green PC Compatible Microsoft Plug and Play Ready DMI Form Factor Intel Baby AT (11" x 8.8") Reduced Form Factor Type "A" I/O Shield (AT Style) Warranty 2 Year Manufacturer's Warranty Specifications may change without notice Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě Problems, experience, griffs.....: Problémy, zkušenosti, tipy, triky.....: |
|
