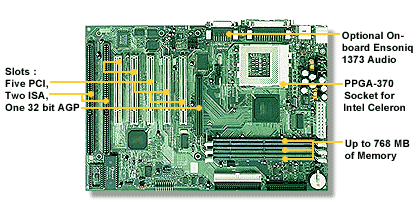

Tomahawk BX - TYAN motherboard
Processor Celeron 300-533 MHz CPU One Socket 370 connector Up to 100 MHz bus support One rev 8.4 VRM on-board Two on-board CPU/case fan headers Processor speeds: CPU compatibility chart Chipset Intel 440BX (100 MHz AGP set) Winbond `977 Super I/O chipset System Memory Up to 768MB SDRAM Memory Support Synchronous DRAM W/SPD SDRAM + ECC Three 168-pin DIMM Sockets 100 MHz SDRAM support [ Compatiblity List ] Expansion Slots Five 32-bit PCI Bus Mastering Slots Two 16-bit ISA Slots One 32-bit AGP Slot One Shared PCI/ISA Slot (7 usable slots) Disk Drive & System I/O UltraDMA/33 (UIDE) built-in (up to 33MB/s DTR) Two PCI Bus Mastering EIDE channels Supports EIDE CD-ROMs Bus-Mastering Mode (Up to 22MB/s DTR) PIO Mode 3 & 4 (Up to 17MB/s DTR) Two Floppy Drive Support (Up to 2.88MB) Two ATX Serial Ports (16550 UARTs) One ATX ECP/EPP Parallel Port Two ATX USB Rev 1.2 Ports One IR (InfraRed) I/O Interface Port One ATX PS/2 Mouse Port One ATX PS/2 Keyboard Port Integrated Audio (optional) Ensoniq 1371 PCI Wavetable audio chip AC97 codec / One ATX Game port ATX Line in, MIC, and speaker ports System Management (optional) ADM9240 sensor chips with on-board alarm for heat, fan and voltage. Reports to the operating system for system monitoring. Tyan Desktop Client Mgr software included Chassis Intrusion Detection capable Voltage and Power ATX Power Supply Connector +12V Power Source for DC-FAN on-board 3.3V DRAM Support Utilizes GTL+ Bus, Reducing Power Consumption and EMI Power recovery after interrupt feature Wake-on-LAN Feature Header (3-pin) *** BIOS Award Plug 'n' Play flash BIOS Standard Deep Green / Energy Star / PC98 ready Yellow LED for Sleep mode Year 2000 compliant Form Factor ATX Design (8.3" x 12.0") Double Row ATX Connectors Type "C" I/O Shield (Intel Caymen Compatible) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
