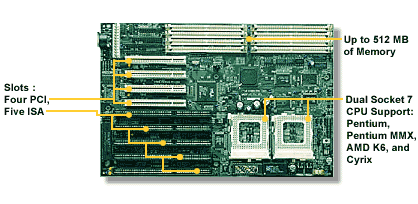

Tomcat IVD - TYAN motherboard
Processor Dual or Single Intel Pentium 75 - 200 MHz Dual or Single Intel MMX 166 - 233 MHz Single Cyrix P120+ - P166+ Single AMD K5/K6 75 - 233 MHz Twin #7 ZIF Sockets Processor speeds: CPU compatibility chart Chipset Intel 430HX System Memory 8-512MB Eight 72-pin SIMM Sockets Fast Page Mode or EDO Dram Support EDO / FPM w/Parity / ECC Support 3.3v and 5.0v DRAM Support Expansion Slots Four 32-bit PCI Bus Mastering Slots Five 16-bit ISA Slots One Shared PCI/ISA Slot - 8 usable Disk Drive & System I/O Two PCI Bus-Master enhanced IDE Ports 4 HDD + EIDE CD-ROM Support Bus-Mastering DMA Mode 2 PIO Mode 3 & 4 Two Floppy Drive Support Two 16C550 High Speed Serial Ports One ECP/EPP High Speed Parallel Port 2 USB Ports Rev 1.2 One IR Port PS/2 Mouse port using IRQ 12 BIOS Award or AMI BIOS Deep Green /Energy Star Compliant Microsoft Plug and Play Ready DMI / Year 2000 Compliant Award Standard AMI Optional Form Factor Baby AT (8.6" x 13.00") Type "A" I/O Shield (AT Style) LM78 Option Optional LM78 thermal monitoring chip Optional Intel LANDesk Client Manager Software, and/or Intel LANDesk Server manager software *** Warranty 2 Year Manufacturer's Warranty Specifications may change without notice Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
