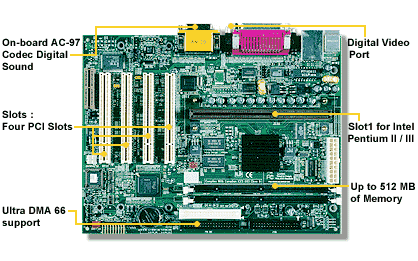

Tomcat i810e - TYAN motherboard
Processor Single Slot1 Pentium II/III processor to 600+ MHz Supports 256/512K built-in Cache Front Side Bus support for 66 / 75* / 83* /95* /100 /105* /129* /133 MHz Integrated VRM Auto configure Clock Multiplier Auto detect CPU Core Voltage Processor speeds: CPU compatibility chart Chipset Intel 810e AGPset ITE 8702/12F LPC Super I/O Chipset Winbond W837835 hardware health chip System Memory Supports 8MB to 512MB Synchronous DRAM W/SPD SDRAM Two 3.3V unbuffered 168-pin DIMM Sockets PC100 compliant 100 MHz SDRAM support [ Compatiblity List ] Expansion Slots Four 32-bit PCI Bus Mastering Slots Shared AMR slot Integrated I/O One Floppy port (1.44MB, 2.88MB, 3-mode) Two 9-pin 16550 UART Serial ports One 25-pin ECP / EPP Parallel port Two USB rev 1.2 ports PS/2 Mouse & Keyboard ports Integrated PCI IDE Two 40-pin IDE connectors for up to 4 drives PIO Mode 3 / 4, UltraDMA 33 / 66 supported ATAPI IDE CD-ROM and LS-120 supported Integrated 2D/3D Graphics Intel® 810e DVMT 3D graphics engine 4MB 100 MHz / 133 MHz SDRAM Cache Standard 15-pin Analog VGA port Integrated Audio Intel 810 digital link audio AC-97 Codec on board One MIDI / Game port Line-in, MIC-in and Line-out ports 4-pin CD-ROM audio (ATAPI) header Integrated LAN (optional) Intel 82559 10/100 Other Features 3-pin Wake on LAN header *** 3-pin Wake on Ring header Two 3-pin fan speed monitoring headers 2-pin Chassis Intrusion header BIOS AMI BIOS on 4MB flash ROM (FWH) Plug and Play APM 1.2 / ACPI 1.0 / PC99 compliant IDE drive auto configure Soft power-down Muliple boot options Instanct PC (suspend to RAM) support DMI 2.0 compliant Hardware monitoring of CPU voltage, temperature and Fan status ACPI Bi-color LED for PC99 Form Factor Micro-ATX Design (9.6" x 7.4") 4-Layer board 20-pin ATX power connector Stacked I/O connectors Type "C" I/O Shield (Intel Caymen Compatible) Regulatory FCC Class B (Declaration of Conformity) European Community CE (Declaration of Conformity) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Package List - Tomcat i810e motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - 80-pin ATA-66 IDE cable - Driver CD Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
