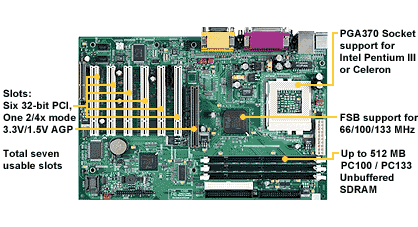

Tomcat i815e - TYAN motherboard
Processor Single PGA370 ZIF socket Supports one Pentium III (FC-PGA) or Celeron processor CPU compatibility chart Single onboard VRM (VRM 8.4 spec) Front Side Bus support for 66MHz, 100MHz and 133MHz Chipset Intel 815e chipset MCH + ICH2 + FWH (4 Mb) National PC87366 LPC Super I/O chip System Memory Three 3.3v 168-pin DIMM sockets Supports up to 512MB PC100/133 unbuffered SDRAM Hardware Monitoring National PC87366 hardware monitoring chip 3-pin fan monitoring headers 2-pin chassis instrusion header CPU temperature and voltage monitoring Expansion Slots One AGP slot supports 2x/4x modes Six 32-bit 33MHz (5-volt) PCI expansion slots Total of seven usable slots Integrated I/O One floppy connector supports up to two drives Two 9-pin 16550-based serial ports (one port via optional cable) One 25-pin SPP/ECP/EPP parallel port PS/2 keyboard and mouse ports Four USB ports (Two ports via optional cable) Integrated 2D/3D Graphics Intel 815e D.V.M. Technology graphics core Integrated 230MHz DAC Integrated hardware motion compensation engines Optional 4MB PC133 SDRAM AGP In-Line Memory Module (AIMM) to improve graphics performance Standard 15-pin analog VGA port Integrated PCI IDE Dual-channel master mode Up to four Enhanced IDE devices Support DMA 100/66/33 IDE drives and ATAPI compliant devices BIOS AMI BIOS on 4Mbit Flash ROM Supports APM v1.2 & ACPI v1.0 Auto-detection of memory size Auto-configuration of IDE hard drive types User settings for hardware monitoring Muliple boot options DMI 2.0 compliant Form Factor ATX 2.03 (12" x 8.2") One 20-pin ATX power connector Stacked keyboard and mouse ports Stacked USB (two) & RJ-45 LAN (w/ LED) ports Stacked VGA (one), parallel (one) and serial (two) ports Regulatory FCC Class B (Declaration of Conformity) European Community CE (Declaration of Conformity) Package List - Tomcat i815e motherboard / User's manual - ATA-66 IDE & 34-pin floppy cable pack - Driver CD, V2.7 Warranty 3 Year Manufacturer's Warranty Specifications are subject to change without notice OS Support Windows 98, Windows 2000, and Windows ME Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
