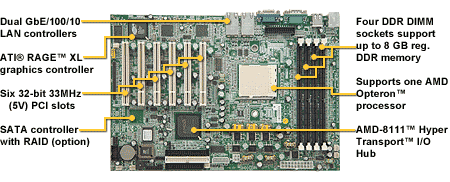

Tomcat K8S (S2850) - TYAN motherboard
Specifications Processor • µPGA 940-pin ZIF socket • Supports one AMD Opteron™ processor • Onboard 3-phase VRM • Integrated 128-bit DDR memory controller Chipset • AMD-8111™ HyperTransport™ I/O Hub • Winbond™ W83627HF Super I/O ASIC • Winbond™ W83782D Hardware Monitor chip Memory • 128-bit dual channel memory bus • Four 184-pin 2.5-Volt DDR DIMM sockets • Supports up to 8GB of Registered DDR • Supports ECC/non-ECC type memory modules • Supports PC3200 / 2700 / 2100 / 1600 DDR Expansion Slots (total of six usable slots) • Six 32-bit 33MHz (5-volt) PCI slots Integrated I/O • One floppy connector support up to two drives • Two 9-pin serial ports - one connector and one header • One 25-pin parallel port header (opt. connector) • Four USB v1.1 ports (two rear and two header) • PS/2 keyboard and mouse connectors System Management • Six 3-pin fan headers with tachometer monitoring • One 2-pin Chassis Intrusion header • Temperature, voltage and fan monitoring Integrated Enhanced IDE Controller • Provides two IDE dual-drive ports for up to four EIDE devices • Supports UDMA 33/66/100/133 IDE drives and ATAPI compliant devices Integrated LAN Controllers • Dual Broadcom® BCM5705 GbE/100/10 LAN controllers • Two RJ-45 LAN connectors with LEDs Integrated PCI Graphics • ATI® RAGE™ XL 8MB PCI graphics controller • 8MB Frame Buffer of video memory Integrated SATA Controller (option) • Silicon Image Sil3114 SATA controller • Supports four-channel SATA RAID (RAID 0, 1, 0+1) • Total of four 7-pin SATA connectors • Supports SATA 1.0 Specification BIOS • AMI® BIOS 8.0 on 4Mbit LPC Flash ROM • Supports ACPI 1.0b • 48-bit LBA Support • Supports PXE via Ethernet • Supports USB device boot • Watchdog timer Form Factor • ATX footprint (12" x 8.2") • 6-layer board • ATX12V universal power connectors • Serial (one) and VGA (one) connectors • Stacked USB 1.1 (two) connectors • Stacked PS/2 keyboard and mouse ports • Two RJ-45 LAN connectors with LEDs Regulatory • FCC DoC (Declaration of Conformity) certified • European CE (Declaration of Conformity). CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
