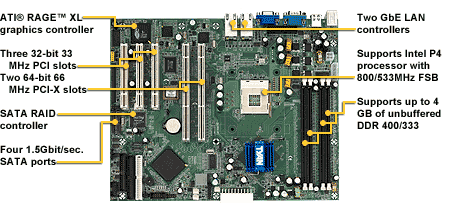

Tomcat i7210 (S5112) - TYAN motherboard
Specifications Processor • Supports one Intel® Pentium® 4 "Northwood" or "Prescott" 800/533MHz FSB processor, also supports Celeron™ processor up to 2.8GHz • Single mPGA478 ZIF socket • Onboard VRM 10 Chipset • Intel® E7210 ("Canterwood ES") chipset • E7210 (North Bridge) • 6300ESB "Hance Rapids" (South Bridge) • Winbond™ W83627HF Super I/O chip Memory • Four 184-pin 2.5V DDR DIMM sockets • Dual/Single channel memory bus • Supports ECC/non-ECC type memory modules • Supports up to 4GB of unbuffered DDR400/333 Expansion Slots • Two 64-bit PCI-X (3.3v) 66MHz slots • Three 32-bit 33MHz PCI 2.2 (5v) slots • Total of five usable slots Integrated I/O • One floppy connector for up to two drives • Two 9-pin serial ports (one via optional cable) • One 25-pin ECP/EPP/SPP parallel header (via optional cable) • Four USB 2.0 ports (two front via optional cable) • PS/2 keyboard and mouse ports Integrated PCI IDE (6300ESB Hance Rapids) • Up to two bus-master IDE channels • Supports up to 4 ATA-100/66/33 IDE ATAPI-compliant devices Integrated SATA Ports • Two ICH5-S integrated SATA ports up to 1.5 Gbit/s • Supports SATA RAID 0,1 Integrated SATA RAID Controller • Silicon Image Sil3114 SATA controller • Four 1.5Gbit/S SATA ports • Supports SATA RAID 0, 1, 10 Integrated Video • ATI® RAGE™ XL PCI graphics controller • 8MB frame buffer (SDRAM) Integrated LAN Controllers • Up to two GbE onboard LAN controllers - Intel 82547GI CSA GbE NIC - Intel 82541GI PCI GbE NIC System Management • On board Analog Devices ADM1027 Hardware Monitoring chip • Total of seven 3-pin fan headers with tachometer monitoring and five of them with PWM control • 3-pin chassis intrusion header • Temperature and voltage monitoring • IPMB connector; Watchdog timer • Supports Tyan M3289 SMDC via 2x25 pin header Tyan 1U/2U Riser Support • Supports Tyan M2033, M2037, M2037R and M2053 1U riser cards • Supports Tyan M2042, M2043, M2043X, and M2044 2U riser cards BIOS • Award BIOS 8Mb flash ROM • Supports ACPI 1.0, PnP, DMI 2.0 • Auto configuration of IDE hard disk types • User settings of hardware monitoring • Multiple boot options • Power Management: ACPI S1, S3, S4 and S5 Form Factor • ATX 2.03 Footprint (12"x9.6", 305x244mm) • ATX12V v1.3 Power Connectors • Optimized for 1U/2U rackmount/pedestal chassis • Stacked PS/2 keyboard and mouse connectors • Stacked USB (two) connectors • Serial (one) and VGA (one) connectors • Side-by-side RJ-45 (two) connectors Regulatory • FCC Class B (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
