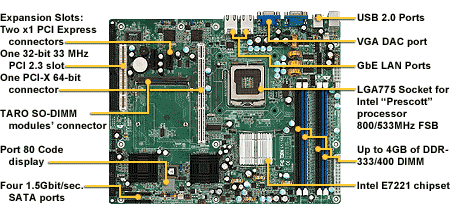

Tomcat i7221 (S5150) - TYAN motherboard
Specifications Processor • Single Socket-T (LGA775 Socket) • Intel® "Prescott" processor • 800/533MHz FSB support Chipset • Intel® E7221 MCH • Intel® ICH6R South Bridge • Intel® PXH-V I/O bridge • SMSC DME1737 Super I/O Memory • Dual channel memory bus • Supports up to four DDR-333/400 DIMM • Up to 4GB of unbuffered, ECC/non-ECC memory Expansion Slots • One PCI-X 64-bit 133/100/66MHz bus supports w/ One PCI-X slot One proprietary 200-pin SO-DIMM connector • PCI ExpressTM, PCI-X, and PCI expansion slots • One 32-bit 33MHz PCI 2.3 slot • Total of five usable expansion slots Integrated I/O • One floppy connector • Four USB 2.0 ports (via cable) • One COM2 port (via cable) • One LPT port (via cable) • Power/IDE/SATA LED connectors • Two 2+2-pin headers for front panel LAN LED • Tyan 2 x 9 front-panel pin headers Back Panel I/O Ports • Stacked PS/2 Mouse & keyboard ports • Stacked two USB 2.0 ports • One 15-pin VGA port; one 9-pin COM port Two RJ45 10/100/1000 Base-T port with activity LED Integrated PCI IDE (ICH6R) • Single channel master mode supports two IDE devices • Support for ATA-100/66/33 IDE drives and ATAPI-compliant devices Integrated Serial ATA (ICH6R) • Four Serial ATA Host controllers embedded • Supports four Serial ports running at 1.5Gb/s • RAID 0, 1 support Integrated Video • 8-bit VGA DAC embedded in the MCH to support an analog display Integrated LAN Controllers • Two GbE LAN controllers - Two Broadcom® BCM5751 PCI Express - Operating at x1 PCIe interface - ASF 2.0 support System Management • SMSC DME1737 with hardware monitoring • One 3+1 pin CPU Fan header w/ tachometer • input and temperature-sensing auto fan control • Four 3-pin system fan headers (two w/ tachometer input temperature-sensing, auto fan control) • Temperature and voltage monitoring • Watchdog timer; port 80 code display LED Optional Modules • M7902, SO-DIMM Ultra 320 SCSI card - Adaptec AIC-7902 dual-channel Ultra320 - SCSI controller - Adaptec HostRAID support with RAID - 0, 1, and 10 supported • M8110 SO-DIMM SATA card - Adaptec AIC-8110 SATA I controller - Support up to 4-port - SATA ports running at 1.5Gb/sec. - Adaptec HostRAID support with RAID - 0, 1, and 10 supported BIOS • Award BIOS 8Mbit flash ROM • Supports APM 1.2 & ACPI 1.0 • PnP, DMI2.0, WfM2.0 Power Management Form Factor • ATX footprint (12" x 9.6", 304.8x243.8mm) • ATX12V support, onboard 4-phase VRM • Universal 24-pin + 8-pin power connectors • 4-pin auxillary power connector Regulatory • FCC Class B (Declaration of Conformity) • CE (Declaration of Conformity) • BSMI CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
