Tomcat i815T (S2080) - TYAN motherboard

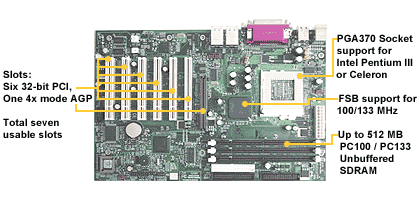

TYAN's Tomcat i815T is the ideal platform for home and business users requiring the latest features at an affordable price. This system board also supports a wide range of Intel Celeron and Pentium III processors, including the new "Tualatin" series proc rives high-speed SDRAM, and a 100/133MHz system bus make the Tomcat i815T the perfect choice for today's mainstream applications. Tomcat i815T Models Standard Model Dual LAN VGA UPC Number S2080 No No 6 35872 005879 S2080GN Yes Yes 6 35872 005794 Standard Features Processor Single PGA370 ZIF socket Supports one Pentium III (FC-PGA) or Celeron processor, including "Tualatin" One onboard VRM (VRM 8.5 spec) System bus support for 100MHz and 133MHz Processor speeds: CPU chart Chipset Intel 815e(p) chipset MCH, ICH2 and FWH (4Mb) NSC PC87366 LPC Super I/O ASIC System Memory Three 3.3v 168-pin DIMM sockets Supports up to 512MB of PC100/133 SDRAM Supports unbuffered SDRAM modules (non-ECC) Expansion Slots One AGP slot supports 4x AGP Six 32-bit 33MHz (5-volt) PCI slots Total of seven usable slots Integrated I/O One floppy connector supports up to two drives Two 9-pin 16550-based serial ports (one port via optional cable) One 25-pin SPP/ECP/EPP parallel port Four USB ports (Two ports via optional cable) PS/2 keyboard and mouse ports Integrated Video (option) Intel i815e D.V.M. technology graphics core Utilizes system memory as a frame buffer Standard 15-pin analog VGA port Integrated LAN (option) Dual LAN controllers - one via Intel ICH2, one via Intel 82559 - 10/100Mbps data transfer rate per controller Integrated PCI IDE Dual-channel master mode Up to four Enhanced IDE devices Support DMA 100/66/33 IDE and ATAPI compliant devices BIOS AMI BIOS on 4Mb Flash ROM Supports APM v1.2 & ACPI v1.0 User settings for hardware monitoring Auto-configuration of IDE hard drive types Muliple boot options; DMI 2.0 compliant Form Factor ATX footprint (12" x 8", 304.8mm x 203.2mm) One 20-pin ATX power connector Stacked keyboard and mouse ports Stacked (1) parallel, (1) serial , & 1 optional VGA ports; stacked (2) USB ports Side-by-side LAN (two) ports (optional) Regulatory FCC DoC (Declaration of Conformity) European CE (Declaration of Conformity) CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
