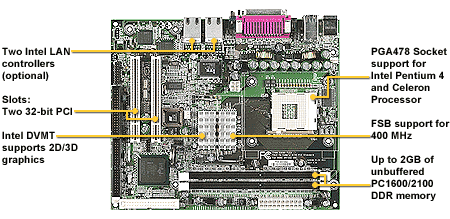

Tomcat i845GL (S2098) - TYAN motherboard
Specifications Processor • Single mPGA478 ZIF socket • Supports one Intel® Pentium® 4 processor or Celeron (mPGA478) processor • Onboard VRM (VRM 9.1 spec) • Front-Side Bus support for 400MHz Chipset • Intel® 845GL chipset • MCH + ICH4 + FWH • ITE IT8712F LPC I/O ASIC Memory • Two 184-pin 2.5V DDR DIMM sockets • Supports up to 2GB of unbuffered DDR266/200 Expansion Slots • Two 33MHz 32-bit (5-volt) PCI slots • Total of two usable slots Integrated I/O • One floppy connector supports up to two drive • One 9-pin 16550-based serial port • One 25-pin ECP/EPP/SPP parallel header • Four USB 2.0 ports • PS/2 keyboard and mouse ports Integrated PCI IDE • Dual-channel master mode • Supports up to four Enhanced IDE devices • Support for ATA-100/66/33 IDE and ATAPI compliant devices Integrated LAN (option) • Dual Fast Ethernet ports (1 included,1 option) • One (or two) Intel 82551 10/100 controller(s) • 3-pin Wake-on-LAN (WoL) header System Management • CPU temperature/voltage monitoring • 3-pin fan monitoring headers • 3-pin Wake-on-Ring (WoR) header Integrated Audio (option) • Realtek ALC202 AC'97 audio codec • Line-in, Line-out, Mic-in jacks • CD-in connector Integrated Video (option) • Intel DVMT technology supports 2D/3D graphics; Intel 845GL chipset supports Intel Extreme Graphics • Standard 15-pin analog VGA port BIOS • Award BIOS on 4Mbit Flash ROM • Jumper-free overclocking and over-voltage • User settings for hardware monitoring • Auto configuration of IDE hard disk types • Multiple boot options Form Factor • Flex ATX footprint (9.0"x7.5") • ATX12V power connector • Stacked parallel (one), serial (one) and VGA (one) ports • Stacked USB (four) ports • Side-by-side LAN and audio ports (S2098AGN) or Side-by-side LAN (two) ports (S2098G2N) • Stacked PS/2 keyboard and mouse ports Regulatory • FCC DoC (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
