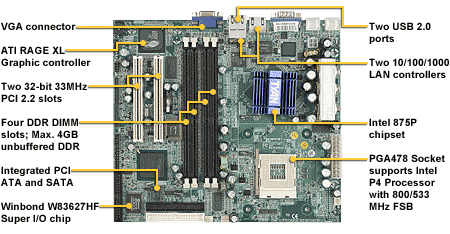

Tomcat i875PF (S5105) - TYAN motherboard
Specifications Processor • Single PGA478 ZIF socket • Supports Intel® P4 "Northwood" processors; supports 800/533MHz FSB • Onboard VRM 10.0 Chipset • Intel® 875P (Canterwood) MCH • Intel 82801EB (ICH5) South Bridge • MCH + ICH5 (or ICH5R) • Winbond™ W83627HF LPC I/O ASIC Memory • Supports up to four DDR DIMM sockets (Dual Channel Configuration) • Up to 4GB of unbuffered DDR400/333 memory • Registered memory is NOT supported • Supports ECC/non-ECC type memory modules Expansion Slots • Two 32-bit (5-volt) 33MHz PCI v2.2 slots Integrated I/O Interfaces • One Floppy connector for up to two drives • Two 9-pin UART serial ports (one header via cable) • Four USB 2.0 ports (2 rear ports & 2 headers) • One parallel port (through header via cable) • PS/2 Mouse & keyboard poarts Integrated PCI ATA & SATA • Intel ICH-5 or ICH-5R • Up to four Enhanced UDMA and SATA devices • Dual channel UDMA Master mode for up to 4 devices - Supports for UDMA 33/66/100 IDE drives and ATAPI compliant devices • Support two independent SATA ports - Data transfer at 1.5 Gb/s - Supports RAID 0 or 1 (only with ICH-5R) Integrated LAN Controllers • Intel® 82547EI CSA 10/100/1000 controller • Intel® 82540EI PCI 10/100/1000 controller • WOL/PXE/ASF2.0 support • Two RJ-45 LAN connectors w/ LEDs Integrated PCI Graphic • ATI® RAGE™ XL PCI controller 8MB frame buffer of video memory System Management • Winbond W83627HF w/ hardware monitoring • One 3-pin CPU & two 3-pin chassis fan headers (temperature controlled) • 2-pin Chassis Intrusion headers • Two temperature sensors & voltage monitoring • Watchdog timer Server Management (option) • QLogic™ Zircon Baseboard Management Controller (BMC) based on powerful ARM7 technology • Tailored for IPMI highest 1.5 Spec. • Supports KCS and BT styles • Supports flexible Windows and Linux based Management Solution • Supports RMCP and SNMP protocols • Supports ASF standard and EMP • I2C serial multi-master controllers and UARTs • Built-in IPMB connector • Supports remote Power on/off and reset support (IPMI over LAN) • Server Management Daughter card via built-in 2x25 header BIOS • Award BIOS on 4Mbit Flash ROM • ACP1.1 / APM1.2 • User settings of HW monitoring • Auto configuration of IDE hard disk types • Quick boot and multiple boot options • LAN remote boot (PXE) support • Event Log support (4K EEPROM) • Power Management: S1, S3, S4, and S5 Form Factor • Flex ATX (9.0" x 8.0"; 229mm x 203mm) • ATX12V power connectors • Side by side PS2 Mouse/Keyboard connectors • Stacked 2 USB connectors and RJ45 LAN connector w/LEDs • One Serial connector • One VGA connector • One RJ45 LAN connectors w/ LEDs Regulatory • FCC DoC (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
