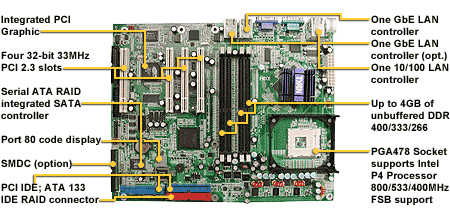

Tomcat i875P (S5102) - TYAN motherboard
Specifications Processor • Single PGA478 ZIF socket • Supports Intel® P4 "Northwood" processors • Hyper-Threading Technology supported • Front-Side Bus support for 800/533/400 MHz Chipset • Intel® 875P (Canterwood) MCH • Intel® 82801EB (ICH5) South Bridge • Winbond™ W83627HF LPC I/O ASIC Memory • Supports up to four DDR DIMM sockets (Dual Channel Configuration) • Up to 4GB of unbuffered DDR400/333/266 mem. • Registered memory is NOT supported • Supports ECC/non-ECC type memory modules Expansion Slots (Total of four usable slots) • Four 32-bit (5-volt) 33MHz PCI 2.3 slots Back Panel I/O Ports • Serial and VGA connectors • Two RJ45 1000/100/10 port (option) • Stacked two USB 2.0 & RJ45 10/100 ports (option) • Stacked PS/2 keyboard and mouse ports Integrated I/O Interfaces • One Floppy connector for up to two drives • Eight USB 2.0 ports (2 rear connectors and 3 headers) • Two 9-pin serial ports (one rear connector and one header) • One IRDA connector (via optional cable) • Power/IDE LED connectors • Headers for CPU/Power Supply/Chassis Fans • One 25-pin ECP/EPP/SPP parallel port header Integrated PCI IDE (ICH5) • Dual-channel master mode supports up to four IDE devices • Supports for ATA-100/66/33 IDE drives and ATAPI compliant devices Integrated Serial ATA RAID • Promise PDC20378 SATA RAID controller Two SATA and one ATA/133 channels • Support up to two SATA and two ATA-133/100 IDE drives • Supports IDE RAID 0, 1, 0+1 Integrated Serial ATA (ICH5) • Two SATA Host controllers embedded in ICH5 • Supports two Serial ports running at 1.5Gb/sec. System Management • Winbond W83627HF w/ hardware monitoring • Three 3-pin fan headers (two fan headers with tachometer monitoring) • Temperature and voltage monitoring • Watchdog timer • Port 80 code display LED Integrated PCI Graphic • ATI® RAGE™ XL PCI controller 8MB frame buffer Integrated LAN Controllers • Two Giga-bit LAN controllers - Intel® 82547EI GbE LAN controller (operatingat 266MB/s CSA interface) - Intel® 82541EI GbE LAN controller (option) • One 10/100 Mbps LAN controller - Intel® 82562EM 10/100 Mbps LAN controller Power • On board VRM, 3-phase PWM • ATX 12V (20-pin + 4-pin) power connectors BIOS • Award BIOS on 4Mbit Flash ROM • Supports APM 1.2 & ACPI 1.0 • PnP, DMI2.0, WfM2.0 Power Management Form Factor • ATX footprint (12"x9.6"; 304.8mm x 243.8mm) Regulatory • FCC DoC (Declaration of Conformity) • European Community CE • BSMI CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
