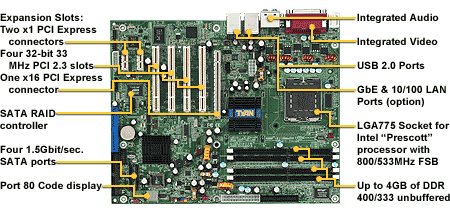

Tomcat i915 (S5120) - TYAN motherboard
Specifications Processor • Single Socket-775 (LGA) • Intel® Pentium® "Prescott" processor • 800/533MHz FSB support Chipset • Intel® i915G (Grantsdale-G) GMCH • Intel® ICH6 South Bridge • SMSC DME1737 Memory • Dual/Single channel memory bus • Up to four DDR DIMM sockets • Supports non-ECC type memory modules • Supports up to 4GB of unbuffered DDR400/333 Expansion Slots • One x16 PCI Express connector for graphics (configurable to x1 PCI Express) • Two x1 PCI Express connectors • Four 32-bit 33MHz PCI 2.3 slots • Total of seven usable slots Integrated I/O • One floppy connector for up to two drives • Four USB 2.0 ports (via cable) • One COM port (via cable) • Tyan 2 x 9 front-panel pin header Back Panel I/O Ports • Stacked PS/2 Mouse & keyboard ports • S/PDIF In/Out optical jacks • One 15-pin VGA port • One 25-pin SPP/ECP/EPP parallel port • Six audio jacks • Stacked two USB 2.0 ports and one RJ45 10/100 Base-T port with activity LED • Stacked two USB 2.0 ports and one optional* RJ45 10/100/1000 Base-T port with activity LED ( * AGNNRF) Integrated PCI IDE (ICH6) • Single channel master mode supports two IDE devices • Support for ATA-100/66/33 IDE drives and ATAPI-compliant devices Integrated Serial ATA (ICH6) • Four Serial ATA Host controllers embedded • Supports four Serial ports running at 1.5Gb/s Integrated SATA RAID (AGNNRF version only) • Promise PDC20579 SATA RAID controller • 2x SATA and 1x Ultra ATA/133 channels • Up to two SATA & two ATA-133/100 IDE drives • Supports IDE RAID 0, 1, 0+1 Integrated Video (i915G) • Intel® GMA 900 3D engine embedded • Up to 224MB shared memory support for graphics Integrated PCI 1394a Controller • VIA VT6307 PCI FireWire (1394a) controller • Two 1394a ports (via cable) Integrated Audio • Realtek ALC880 7.1 channel audio CODEC • "Azalia" / AC'97 2.3 supported, UAA compliant • Supports S/PDIF In/Out interface • 2 x 5 pin header for front panel audio connector • CD-in connector Integrated LAN Controllers • One GbE LAN controller (AGNF version) - Broadcom® BCM5751 PCI Express GbE LAN controller operating at x1 PCIe interface • One GbE and one 10/100 LAN controller (AGNNRF version) - Broadcom® BCM5751 PCI Express GbE LAN controller operating at x1 PCIe interface - Intel® 82551QM 10/100 LAN controller - Operating at 32bit/33MHz PCI bus System Management • SMSC DME1737 with hardware monitoring • One 3+1 pin CPU Fan header w/ tachometer • input and temperature-sensing auto fan control • Four 3-pin system Fan headers (three with tachometer input and two with temperature- sensing, auto fan control) • Watchdog timer BIOS • Award BIOS 8Mbit flash ROM • Supports APM 1.2 & ACPI 1.0 • PnP, DMI2.0, WfM2.0 Power Management • Jumper free setting for CPU over clocking and • over voltage Form Factor • ATX footprint (12" x 9.6", 305x244mm) • ATX12V support, onboard 4-phase VRM • Universal 24-pin + 8-pin power connectors • 4-pin auxillary power connector Regulatory • FCC Class B (Declaration of Conformity) • CE (Declaration of Conformity) • BSMI CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
