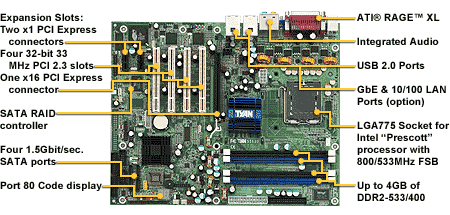

Tomcat i925X (S5130) - TYAN motherboard
Specifications Processor • Single Socket-775 (LGA) • Intel® Pentium® "Prescott" processor • 800/533MHz FSB support Chipset • Intel® i925X GMCH • Intel® ICH6R South Bridge • SMSC DME1737 Memory • Dual channel memory bus • Support up to four DDR2-533/400 DIMMs • Supports up to 4GB of unbuffered ECC memory Expansion Slots • One x16 PCI Express connector for graphics (configurable to x1 PCI Express) • Two x1 PCI Express connectors • Four 32-bit 33MHz PCI 2.3 slots • Total of seven usable slots Integrated I/O • One floppy connector for up to two drives • Four USB 2.0 ports (via cable) • One COM port (via cable) • Tyan 2 x 9 front-panel pin header Back Panel I/O Ports • Stacked PS/2 Mouse & keyboard ports • S/PDIF In/Out optical jacks (ANRF version only) • One 15-pin VGA port (G2NR version only) • One 25-pin SPP/ECP/EPP parallel port • Six audio jacks (ANRF version only) • Stacked two USB 2.0 ports and one RJ45 10/100/1000 Base-T port with activity LED • Stacked two USB 2.0 ports and one optional* RJ45 10/100/1000 Base-T port with activity LED ( * G2NR) Integrated PCI IDE (ICH6R) • Single channel master mode supports two IDE devices • Support for ATA-100/66/33 IDE drives and ATAPI-compliant devices Integrated Serial ATA (ICH6R) • Four Serial ATA Host controllers embedded • Supports four Serial ports running at 1.5Gb/s • RAID 0, 1 support • SATA activity LED connector Integrated SATA RAID (OEM SKU only) • Promise PDC20579 SATA RAID controller • 2x SATA and 1x Ultra ATA/133 channels • Up to two SATA & two ATA-133/100 IDE drives • Supports RAID 0, 1, 0+1 Integrated Video (G2NR version only) • ATI® RAGE™ XL PCI graphics controller • 8MB frame buffer of video memory Integrated PCI 1394a (ANRF version only) • VIA VT6307 PCI FireWire (1394a) controller • Two 1394a ports (via cable) Integrated Audio (ANRF version only) • Realtek ALC880 7.1 channel audio CODEC • "Azalia" / AC'97 2.3 supported, UAA compliant • Supports S/PDIF In/Out interface • 2 x 5 pin header for front panel audio connector • CD-in connector Integrated LAN Controllers • Two GbE LAN controllers (G2NR version) - Two Broadcom® BCM5751 GbE LAN ctrlers. - Operating at x1 PCIe interface - ASF 2.0 support - Pin headers for front panel LAN LED • One GbE LAN controller (ANRF version) - One Broadcom BCM5751 GbE LAN controller - Operating at x1 PCIe interface - ASF 2.0 support - Pin headers for front panel LAN LED System Management • SMSC DME1737 with hardware monitoring • One 3+1 pin CPU Fan header w/ tachometer • input and temperature-sensing auto fan control • Four 3-pin system Fan headers (three with tachometer input and two with temperature- sensing, auto fan control) • Watchdog timer • Port 80 code display LED BIOS • Award BIOS 8Mbit flash ROM • Supports APM 1.2 & ACPI 1.0 • PnP, DMI2.0, WfM2.0 Power Management • Jumper free setting for CPU over clocking and • over voltage Form Factor • ATX footprint (12" x 9.6", 305x244mm) • ATX12V support, onboard 4-phase VRM • Universal 24-pin + 8-pin power connectors • 4-pin auxillary power connector Regulatory • FCC Class B (Declaration of Conformity) • CE (Declaration of Conformity) • BSMI CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
