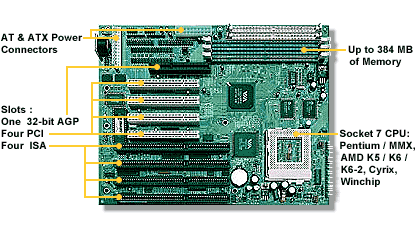

Trinity 100AT - TYAN motherboard
Processor Intel Pentium/Pentium MMX Cyrix/IBM 6x86(M1) / 6x86MX(M2) AMD K5/K6/K6-2 (K63D) IDT C6/C6+ ZIF Socket #7 / 66 MHz-100 MHz Bus Speeds Processor speeds: CPU compatibility chart Chipset VIA Apollo MVP3 AGPset Newest and fastest 100 MHz Socket7/AGP chipset System Memory Up to 384 MB on board (3.3V / 5V) Two 72-pin SIMM Sockets Three 168-pin DIMM Sockets EDO, SDRAM , Parity, DIMM support ECC support using parity memory 1MB second level cache Expansion Slots Four 32-bit PCI Bus Mastering Slots Four 16-bit ISA Slots One 32-bit AGP slot One Shared PCI/ISA Slot - 8 usable Disk Drive & System I/O Two PCI Bus-Master enhanced IDE Ports 4 HDD + EIDE CD-ROM Support UltraDMA/33 Support (UIDE) Bus-Mastering DMA Mode 2 support PIO Mode 3 & 4 Two Floppy Drives (up to 2.88MB/Mode 3) Two serial ports (16550 UART's) One ECP/EPP parallel port One IR (infra red) I/O interface port header Two USB rev 1.2 port headers One PS/2 mouse port connector header Network Feature 3-pin Wake on LAN header ** Voltage and Power Design incorporates AT and ATX power connectors +12V power source for DC fan on board 3.3V or 5.0V DRAM support Switching power supply on-board BIOS Award BIOS - Award Standard Deep Green Energy Star compliant Microsoft Plug and Play Ready Soft power-down / Multiple boot options ACPI /Year 2000 / PC97/98 compliant Win98 Ready / DMI 2.0 compliant Form Factor Mini-AT design (11.1"x8.75"_ Reduced form factor Type "A" I/O Shield (AT Style) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Package List - Trinity 100AT motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - Serial/parallel cable set - PS/2 mouse cable - Driver CD Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
