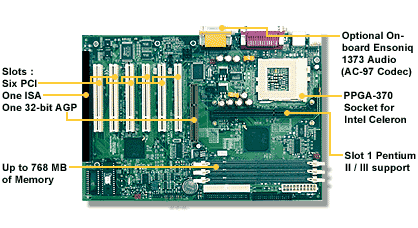

Trinity 371 - TYAN motherboard
Processor Single Slot 1 and Socket 370 Supports Intel Celeron 233-533MHz and Pentium II/III 233-600MHz * Supports processor built-in 128/512K+ Cache FSB support for 66 / 100 MHz Integrated VRM complies to spec 8.4 Supports Clock multiplier 3.0 to 8.0 Auto detect CPU Core Voltage Processor speeds: CPU compatibility chart Chipset Intel 440BX (100 MHz AGP set) Winbond W83977F Super I/O controller System Memory Supports 32 to 768MB Three 3.3V unbuffered 168-pin DIMM Sockets PC100 compliant SDRAM support [ Compatiblity List ] Supports ECC (72-bit) type memory module Expansion Slots Five 32-bit PCI 2.1 Bus Mastering Slots One PCI / ISA Slot One 2x AGP 2.0 Slot Total 7 usable slots All slots support full length add-on cards Disk Drive & System I/O One Floppy connector for up to 2 drives (1.44MB, 2.88MB, 3-mode) Two 9-pin 16550 UART Serial ports One 25-pin ECP/EPP Parallel port One IrDA TX / RX header Two USB rev. 1.2 ports PS/2 Mouse and Keyboard Ports Integrated Audio (optional) Creative Labs ES1373 PCI chip AC97 codec rev 2.1 One MIDI / Game port Line in, MIC-in and Line-out ports 4-pin CD-ROM audio (ATAPI) header 4-pin Telephony (ATAPI) header Integrated PCI IDE Two 40-pin IDE connectors for up to 4 drives. PIO Mode 3/4, UltraDMA 33 supported ATAPI IDE CD-ROM and LS-120 supported Other Features 3-pin Wake on LAN header *** 3-pin Wake on Ring header *** Two 3-pin Fan speed monitoring headers 2-pin Chassis Intrusion header BIOS AMI BIOS on 2MB flash EEPROM Plug and Play APM 1.2 / ACPI 1.0 / PC99 compliant IDE drive auto configure Soft power-down Multiple boot options DMI 2.0 compliant Hardware monitoring of CPU voltage, temperature and Fan status (optional) Form Factor ATX Design (8.3" x 12.0") 4-layer board 20-pin ATX Power Connectors Stacked ATX I/O Connectors Type "C" I/O Shield (Intel Caymen Compatible) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Regulatory FCC Class B (Declaration of Conformity) European Community CE (Declaration of Conformity) Package List - Trinity 371 motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - Driver CD - URM Retention Module Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
