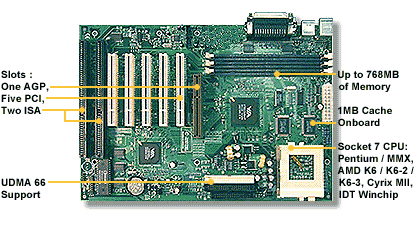

Trinity ATX-S - TYAN motherboard
Processor Single ZIF Socket #7 AMD K6 / K6-2 / K6-3 233-450+ MHz Cyrix MII 300-333+ MHz IDT WinChip 233-300+ MHz Pentium / Pentium MMX 75-233 MHz Front Side Bus support for 66 / 83 / 95 / 100 MHz Integrated VRM Supports Core Voltage settings 1.3 - 3.5V Supports Clock Multiplier 1.5 - 5.5 Processor speeds: CPU compatibility chart Chipset VIA MVP3 100 MHz memory & AGP controller (VT82C598AT) VIA VT82C686 Super I/O Controller System Memory Supports 8MB to 768MB Three 3.3V unbuffered 168-pin DIMM sockets Supports EDO, 66 MHz or 100 MHz (PC100) Synchronous DRAM W/SPD [ Compatiblity List ] ECC supported VIA chipset Cache Memory On board Pipeline Burst SRAM 1MB or 2MB (optional) Expansion Slots One AGP Slot supports 66/133 MHz speeds Five 32-bit PCI 2.1 Bus Master slots Two 16-bit ISA slots (One slot is a shared PCI / ISA slot) Total 7 usable slots All slots support full length add-on cards Integrated I/O One Floppy port (1.44MB, 2.88MB, 3-mode) Two 9-pin 16550 UART Serial ports One 25-pin ECP / EPP Parallel port One Fast IR TX / RX Header Two USB (0,1) rev 1.2 ports Two USB (2,3) rev 1.2 ports via cable (optional) PS/2 Mouse & Keyboard ports Integrated PCI IDE Two 40-pin IDE connectors for up to 4 drives PIO mode 3 / 4, UltraDMA 33 /66 supported ATAPI IDE CD-ROM and LS-120 supported Integrated Audio (optional) VIA VT82C686 digital link audio AC-97 Codec on board One MIDI / Game port Line-in, MIC-in and Line-out ports 4-pin CD-ROM audio (ATAPI) header 4-pin Video-in (ATAPI) header Other Features 3-pin Wake-on-LAN Header*** 3-pin Wake-on-Ring Two 3-pin Fan speed monitoring support BIOS Award BIOS on 2MB flash RAM Plug and Play APM 1.2 / ACPI 1.0 / PC98 compliant IDE drive auto-configure Soft power down Multiple boot options DMI 2.0 compliant Hardware monitoring of CPU voltage, temperature and Fan status Form Factor ATX Design (8.3" x 12.0") 4-Layer board 20-pin ATX power connector Stacked (Double Row) I/O Connectors Type "C" I/O Shield (Intel Caymen Compatible) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Package List - Trinity ATX motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - Driver CD Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
