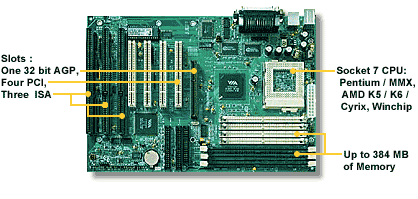

Trinity ATX - TYAN motherboard
Processor Intel Pentium/Pentium MMX 100-233 MHz Cyrix/IBM 6x86(M1) / 6x86MX(M2) 120-233 MHz AMD K5/K6 100-266 MHz IDT C6/C6+ 150-225 MHz ZIF Socket #7 / 66-83 MHz Bus Speeds Processor speeds: CPU compatibility chart Chipset VIA Apollo VP3 AGPset First generation Socket7/AGP chipset System Memory Up to 384 MB on board (See S1592S Manual Specification Addendum) Four 72-pin SIMM Sockets Three 168-pin DIMM Sockets FPM or EDO DRAM Support EDO DIMM and SDRAM Support 512K L2 Cache on board Expansion Slots Expansion Slots Four 32-bit PCI Bus Mastering Slots Three 16-bit ISA Slots One 32-bit AGP slot One Shared PCI/ISA Slot - 7 usable Disk Drive & System I/O Disk Drive & System I/O Two PCI Bus-Master enhanced IDE channels 4 HDD & EIDE CD-ROM Support Ultra DMA/33 Support (UDMA HDD required) Bus-Mastering Mode (Up to 22MB/sec DTR) PIO Mode 3&4 (up to 17MB/sec DTR) Two floppy drive (up to 2.88MB) connectors Two ATX (9-pin) serial ports (16550 UARTs) One ATX ECP/EPP parallel port One IR (InfraRed) I/O interface port header Two ATX USB Rev 1.2 ports One ATX PS/2 mouse port One ATX PS/2 keyboard port BIOS Award or AMI BIOS - Award Standard Green PC Compatible Microsoft Plug and Play Ready Form Factor Reduced ATX (8" x 11.6") Type "V" I/O Shield (Intel Venus Compatible) Optional "L" package ** Optional National LM78 Thermal, fan, and heat monitoring chip Optional Intel LANDesk Client manager software, and/or Intel LANDesk Server manager software. Optional Tyan Desktop Client Management software 3-pin Wake on LAN header (Requires ATX 2.1 PS) Warranty 3 Year Manufacturer's Warranty Specifications may change without notice Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
