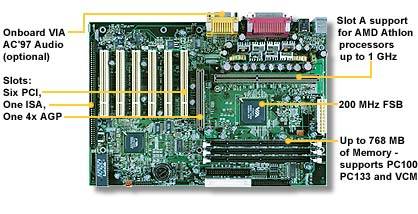

Trinity K7 - TYAN motherboard
Processor Single Slot A AMD Classic Athlon 500 MHz to 1 GHz 200 MHz Front Side Bus Auto-detect Processor Voltage Clock multiplier 5.0 to 10.0 ECC Protection on system and Cache Interfaces Processor speeds: CPU compatibility chart Chipset VIA Apollo KX-133 VT8371 and VT82C686A System Memory Three 168-pin 3.3V DIMM Sockets Supports up to 768 MB Supports PC100 / PC133 SDRAM and VCM SDRAM (see Compatiblity List ) ECC memory not supported Cache Memory Processor Built-in 128KB L1 Cache Processor Built-in 512KB L2 Cache Hardware Monitoring VIA hardware monitoring chip 3-pin Fan monitoring headers Flexible Temperature Sensor Under CPU heatsink Hardware Detects +/- 5V, +/- 12V, CPU status System Health Status Detect 3-pin Wake on LAN header 3-pin Wake on Ring header Expansion Slots One 1x / 2x / 4x AGP v.2.0 slot Six 32-bit PCI v.2.2 compliant slots One 16-bit ISA slot (shared w/ a PCI slot) Total seven usable slots Integrated I/O One Floppy connector for up to two drives Two 9-pin 16550 UART Serial ports One 25-pin ECP / EPP Parallel port PS/2 Mouse & Keyboard ports Four USB ports (two headers via cable optional) Integrated Audio (optional) VIA VT82C686A Southbridge Digital Link Audio AC'97 Audio Codec Line-in, Line-out, Mic ports 4-pin CD-ROM audio header Integrated PCI IDE Dual channel master mode Supports four Enhanced IDE devices Support for PIO Mode 3/4, Ultra DMA 33 / 66 and ATAPI compliant devices Power Supply One 20-pin ATX power connector Input voltage - 90V to 130V at 60 Hz Output Wattage - 235W Output Voltage - 3.3V, +/- 5V, +/- 12V Backup Battery - 3.0V to 3.6V Cr2032 lithium - magnesium-oxide coin cell BIOS Award BIOS 2Mbit Flash RAM Supports APM & ACPI Auto detection of memory size Auto configuration of IDE hard disk types User settings of hardware monitoring Multiple boot options DMI 2.-0 / PC99 compliant Form Factor ATX 2.01 (12.0" x 8.2") 4-layer board Stacked Mouse / Keyboard ports Stacked (2) USB ports Stacked (2) Serial / (1) Parallel connectors Type "C" I/O Shield (Intel Caymen Compatible) Regulatory FCC Class B (Declaration of Conformity) European Community CE (Declaration of Conformity) Package List - Trinity K7 motherboard / User's manual - 40-pin IDE & 34-pin floppy cable pack - 80-pin ATA-66 IDE cable - Driver CD - URM Retention Module Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
