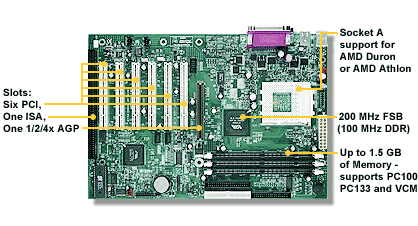

Trinity KT - TYAN motherboard
Processor Single Socket A ZIF socket Supports one AMD Duron or Athlon processor Auto-detection of processor voltage 200MHz (100MHz DDR) system bus speeds. CPU compatibility chart Chipset VIA Apollo KT-133 chipset (VT8363 and VT82C686A) System Memory Three 168-pin 3.3v DIMM sockets Supports up to 1.5GB of PC100 or PC133 memory Supports SDRAM and VCM SDRAM memory types Hardware Monitoring VIA 686A hardware monitoring chip 3-pin fan monitoring headers 2-pin chassis intrusion header CPU temperature and voltage sensing 3-pin Wake on LAN (WoL) header 3-pin Wake on Ring (WoR) header Expansion Slots One AGP slot supports 2x/4x modes Six 32-bit 33MHz (5-volt) PCI slots (v.2.1) One 16-bit ISA slot (shared w/ a PCI slot) Total seven usable slots Integrated PCI IDE Dual channel master mode Supports four enhanced IDE devices Support for PIO Mode4, DMA66/33 IDE and ATAPI compliant devices. Integrated I/O One floppy connector supports up to two drives Two 9-pin 16550-based serial ports One 25-pin SPP/ECP/EPP parallel port PS/2 keyboard and mouse ports Four USB ports (two ports via optional cable) BIOS Award BIOS 2Mb Flash ROM Supports APM v1.2 and ACPI v1.0 Auto-detection of memory size Auto-configuration of IDE hard drive types User settings for hardware monitoring Multiple boot options DMI 2.0 compliant Form Factor ATX (12" x 8.2") One 20-pin ATX power connector Stacked keyboard and mouse ports Stacked USB (two) ports Stacked parallel (one) and serial (two) ports Packing List - Trinity KT motherboard / User's manual - 34-pin floppy cable - ATA-66 IDE cable - Driver CD Regulatory FCC DoC (Declaration of Conformity) European Community CE (Declaration of Conformity) Get the manual Manual DOWNLOAD list CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
