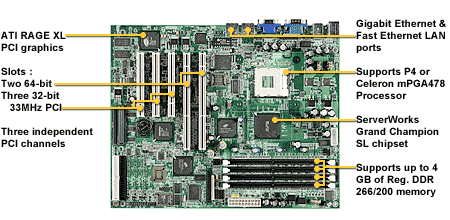

Trinity GC-SL (S2707) - TYAN motherboard
Specifications Processor • mPGA478 ZIF socket • Supports one Intel® Pentium® 4 with Hyper-Threading processor or Celeron (mPGA478) processor • Onboard VRM (VRM 9.0 spec) • Front-Side Bus support for 533/400MHz • Supports Hyper-Threading™ Chipset • ServerWorks™ Grand Champion™ SL chipset • CMIC, CIOB-X 2.0 and CSB5 • National NS87417 Super I/O ASIC Memory • Four 184-pin 2.5V DDR DIMM sockets • Supports up to 4GB of Registered DDR266/200 • Supports ECC type memory modules Expansion Slots (total of five usable slots) • One 133/100/66MHz 64-bit PCI-X slot • One 100/66MHz 64-bit PCI-X slot • Three 33MHz 32-bit PCI slots • Three independent PCI channels Integrated I/O • One floppy connector supports up to two drive • Two 9-pin 16550-based serial ports (one via optional cable) • One 25-pin ECP/EPP/SPP parallel connector • Four USB 1.1 ports (two via optional cable) • PS/2 keyboard and mouse ports Integrated PCI IDE • Dual-channel master mode • Supports up to four Enhanced IDE devices • Support for ATA-66/33 IDE and ATAPI devices Integrated Video (option) • ATI® RAGE™ XL graphics controller • 8MB frame buffer System Management • CPU temperature/voltage monitoring • Four 3-pin fan headers, three of which can be monitored and controlled • One 2-pin chassis intrusion headers • Winbond W83782D hardware monitoring ASIC Integrated LAN (option) • Gigabit Ethernet and Fast Ethernet (S2707GNN) • Two LAN controllers - one Intel 82545EM 10/100/1000 controller - one Intel 82551QM 10/100 controller - option for 2nd GbE port with Intel 82540EM (S2707G2N-533) • Intel 82545EM Gigabit Ethernet connected to PCI-X bus BIOS • AMI BIOS on 4Mbit Flash ROM • User settings for hardware monitoring • Auto configuration of IDE hard disk types • Multiple boot options Form Factor • ATX footprint (12"x9.6", 304.8x243.84mm) • ATX12V power connectors • Stacked parallel (one), serial (one) and VGA (one) ports • Stacked USB (two) connectors • Side-by-side LAN (two) ports • Stacked PS/2 keyboard and mouse connectors Regulatory • FCC DoC (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
