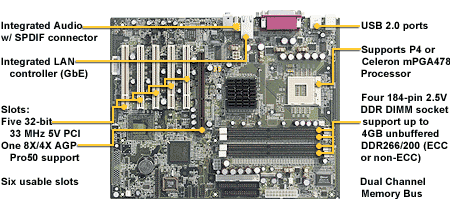

Trinity i7205 (S2662) - TYAN motherboard
Specifications Processor • mPGA478 ZIF socket • Supports one Intel® Pentium® 4 processor or Celeron (mPGA478) processor • Onboard VRM (VRM 9.0 spec) • Front-Side Bus support for 533/400MHz Chipset • Intel® E7205 chipset • MCH + ICH4 + FWH • Winbond™ W83627HF Super I/O chip • Analog Devices™ ADM1027 - system monitoring and multi-fan controller Memory • Four 184-pin 2.5V DDR DIMM sockets • Supports up to 4GB of unbuffered DDR266/200 • Dual channel memory bus • Supports ECC/non-ECC type memory modules Expansion Slots • One 8X/4X AGP Pro50 slot (1.5V) • Five 32-bit 33MHz (5V) PCI slots • Total of six usable slots Integrated I/O • One floppy connector supports one drive • Two 9-pin serial connectors • One 25-pin ECP/EPP/SPP parallel header • Six USB 2.0 ports (two rear, four via header) • PS/2 keyboard and mouse ports Integrated PCI IDE • Provides two PCI bus master channels for up to four Enhanced IDE (EIDE) devices • Supports for UDMA-100/66/33 IDE drives and ATAPI-compliant devices Integrated LAN Controllers • Intel® 82540EM Gigabit Ethernet Controller - One RJ-45 LAN connector with LEDs System Management • Total of four 3-pin fan headers • Three fan headers with tachometer monitoring • One 3-pin chassis intrusion header • Temperature, voltage, and fan monitoring Integrated Audio • Intel® ICH4 AC'97 compliant audio link • ADI 1981A CODEC • Line-in, Line-out, Mic-in rear jacks - one RCA SPDIF connector • One front panel audio header • One 4-pin CD-ROM audio header (ATAPI) • One 4-pin Auxiliary audio header (ATAPI) BIOS • Phoenix™ BIOS 6.0 on 4/8Mbit Flash ROM • LAN remote boot (PXE) and SMBIOS v2.3 • BIOS Boot Specification v1.1 (BBS) support • Quick Boot and Multiple Boot support • ACPI v2.0 (S1, S3, S4, and S5) support • Auto Configuration of IDE Hard Disk Types Form Factor • ATX Footprint (12"x9.6", 304.8x243.84mm) • 6-Layer Design • ATX12V (20 + 4-pin) Power Connectors • RJ-45 LAN (one) connector with LEDs • Stacked parallel (one), serial (two) connectors • Stacked USB 2.0 (two) connectors • Stacked PS/2 keyboard and mouse connectors • Audio Line-in, Line-out, Mic-in jacks • One RCA SPDIF connector Regulatory • FCC Class B (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
