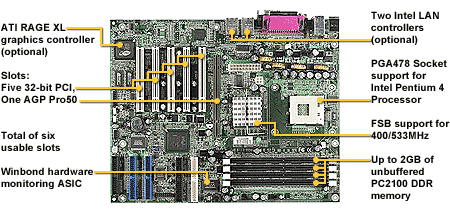

Trinity i845E (S2099) - TYAN motherboard
Specifications Processor • Single mPGA478 ZIF socket • Supports one Intel® Pentium® 4 processor with Hyper-Threading, including "Northwood" series • Onboard VRM (VRM 9.1 spec) • Front-Side Bus support for 533/400MHz Chipset • Intel® 845E chipset • MCH + ICH4 + FWH • Winbond W83627HF LPC I/O ASIC Memory • Four 184-pin 2.5V DDR DIMM sockets • Supports up to 2GB of unbuffered PC2100 DDR • Supports 72-bit ECC memory modules Expansion Slots • AGP Pro50 slot; also supports AGP 4X • Five 33MHz 32-bit (5-volt) PCI slots • Total of six usable slots Integrated I/O • One floppy connector supports up to two drive • One 9-pin 16550-based serial port • One 25-pin ECP/EPP/SPP parallel header • Six USB 2.0 ports (4 stacked, 2 via opt. cable) • PS/2 keyboard and mouse ports Integrated IDE RAID (option) • Promise PDC20276 dual-channel ATA-133 controller • Supports up to four ATA-133/100/66 IDE drives • Support RAID level 0 and 1 with two drives Integrated LAN (option) • Fast Ethernet or Fast Ethernet and Gigabit Ethernet (option) • Intel® 82562 (Fast Ethernet); Intel 82540 (GbE) • 3-pin Wake-on-LAN (WoL) header System Management • CPU temperature/voltage monitoring • 3-pin fan monitoring headers • 3-pin Wake-on-Ring (WoR) header • Winbond W83627HF ASIC for hardware monitoring Integrated Audio (option) • Realtek ALC650 6-channel AC'97audio codec • Line-in, Line-out, Mic-in jacks • CD-in connector Integrated Video (option) • ATI® RAGE™ XL graphics controller 8MB frame buffer • Standard 15-pin analog VGA port BIOS • Award BIOS on 4Mbit Flash ROM • Jumper-free overclocking and over-voltage • User settings for hardware monitoring • Auto configuration of IDE hard disk types • Multiple boot options Form Factor • ATX footprint (12"x9.6") • ATX12V power connector • Stacked parallel (one), serial (one) and VGA (one, option) ports • Stacked USB (four) ports • Side-by-side audio (one, option) and LAN (one or two, option) ports • Stacked keyboard and mouse ports Regulatory • FCC DoC (Declaration of Conformity) • European Community CE CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
