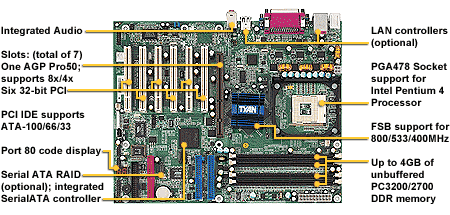

Trinity i875P (S5101) - TYAN motherboard
Specifications Processor • Single mPGA478 ZIF socket • Supports Intel® P4 "Northwood" processor • Hyper-Threading Technology supported • Onboard VRM (VRM 9.1 spec) • Front-Side Bus support for 800/533/400 MHz Chipset • Intel® 875P (Canterwood) MCH • Intel 82801EB (ICH5) South Bridge • Winbond W83627HF LPC I/O ASIC Memory • Supports up to four DDR DIMM sockets (Dual Channel Configuration) • Up to 4GB of unbuffered PC3200/PC2700/PC2100 DDR • Supports ECC/non-ECC type memory modules Expansion Slots (Total of seven usable slots) • One AGP Pro50 slot; also supports AGP 8x/4x • Six 33MHz 32-bit (5-volt) PCI 2.3 slots Back Panel I/O Ports • Vertical Mic-In/Line-In/Line-Out audio jacks • Stacked parallel, Serial connectors • Stacked two USB 2.0 and & RJ45 1000/100 port • Stacked two USB 2.0 and & RJ45 10/100 port • Stacked PS/2 keyboard and mouse ports Integrated I/O Interfaces • One Floppy connector for up to two drives • Two 2 x 5 pin headers for USB 2.0 connector (via optional cable) • One COM2 port (via optional cable) • 2 x 5 pin header for front panel audio connector • One IRDA connector (via optional cable) • Power/IDE LED connectors • Headers for CPU/Power Supply/Chassis Fans Integrated 1394a (FireWire) (option) • VIA VT6307 PCI 1394a controller • Two IEEE 1394a ports (onboard pin header) Integrated PCI IDE (ICH5) • Dual-channel master mode supports up to four IDE devices • Supports for ATA-100/66/33 IDE drives and ATAPI compliant devices Integrated Serial ATA RAID (option) • Promise PDC20378 SATA RAID controller 2x SATA and 1x Ultra ATA/133 channels • Support up to two SATA and two ATA-133/100 IDE devices • Supports IDE RAID 0, 1, 0+1 Integrated Serial ATA (ICH5) • Two SATA Host controllers embedded in ICH5 • Supports two Serial ports running at 1.5 Gb/s System Management • Winbond W83627HF w/ hardware monitoring • Four 3-pin fan monitoring headers • CPU temperature/voltage monitoring • Watchdog timer • Port 80 code display LED Integrated Audio • 6-channel AC'97audio CODEC • Line-in, Line-out, Mic-in audio jacks • CD-in, Aux-in connector Integrated LAN Controllers (option) • One 10/100 LAN controller - Realtek RTL8100C LAN controller (option) - Operating at 32bit/33MHz PCI bus - Upgrade RTL8110S-32 GbE LAN (option) • One Giga-bit LAN controller - Intel 82547EI GbE LAN controller - Operating at 266MB/s CSA interface Power • On board VRM, 3-phase PWM • ATX 12V (20-pin + 4-pin) power connectors • 4-pin auxiliary power connector BIOS • Award BIOS on 4Mbit Flash ROM • Supports APM 1.2 & ACPI 1.0 • PnP, DMI2.0, WfM2.0 Power Management • Jumper free setting for CPU over clocking and over voltage. Form Factor • ATX footprint (12"x9.6"; 305mm x 244mm) • ATX12V power connector • Stacked parallel (one), serial (two) ports • Stacked USB (four) ports • Side-by-side audio (one, option) and LAN (one or two, option) ports • Stacked keyboard and mouse ports Regulatory • FCC DoC (Declaration of Conformity) • European Community CE • BSMI CPU Support Compatibility RAM Memory Support Compatibility Manufacturer - downloads drivers, manuals and BIOS : TYAN Prodejce v ČR : Možnost vložení odkazu prodejce - info zde Recenze : Odkazy na recenze vložíme po dohodě |
|
